OKUMA HOWA Twin Spindle Vertical Turning Centers

Stock Number K14655

Okuma Howa 2SP-V40 Vertical Twin Spindle CNC Turning Centers 2 Spindle Lathe for sale

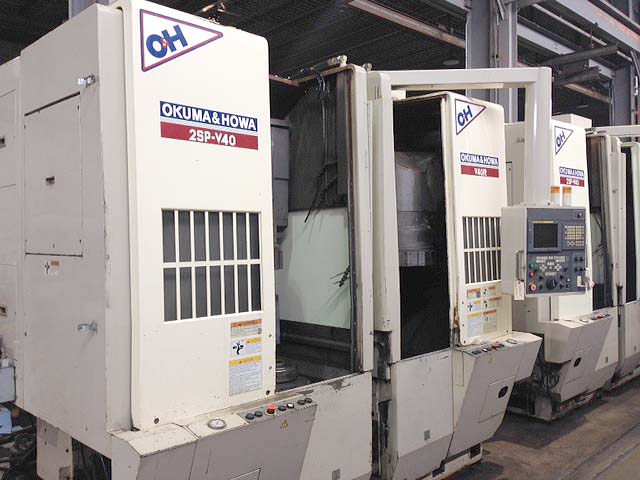

ACTUAL PHOTOS

OKUMA & HOWA 2SP-V40 TWIN SPINDLE CNC VERTICAL TURNING CENTER
Model 2SP-V40, New 2003
Stock# K14655

EQUIPPED WITH
Fanuc 18i-T CNC Controls, Multiple Part Program Storage, RS-232 Port,
(2) 12-Position Horizontal Turrets, (2) 28 HP Spindle Motors,
Coolant, Auto Lube System, (2) Chip Conveyors and Coolant Systems.

SPECIFICATIONS
Swing Inside the Guards................................ 20"
Standard Chuck Size (Not Equipped)..................... 15"
Max. Cutting Diameter with Standard Tool Holders....... 15.7"
Max. Cutting Diameter with Special Toolholders......... 20"
Max. Cutting Length.................................... 17.7"
Spindle Center Height From Floor....................... 37.8"
Spindle Speed.......................................... 20-2500 RPM
Spindle Nose........................................... A2-8
Turret Type............................................ Drum Type
Number of Turrets...................................... 2
Tool Positions on each Turret.......................... 12 ea
X-Axis Travel.......................................... 10.4"
Z-Axis Travel.......................................... 17.7"
Rapid Rates X & Z...................................... 944 IPM
Approximate Machine Dimensions (w/o Chip Conv)......... 92" x 117"
Approximate Machine Height............................. 120"
Approximate Machine Weight............................. 32,000 Lbs
