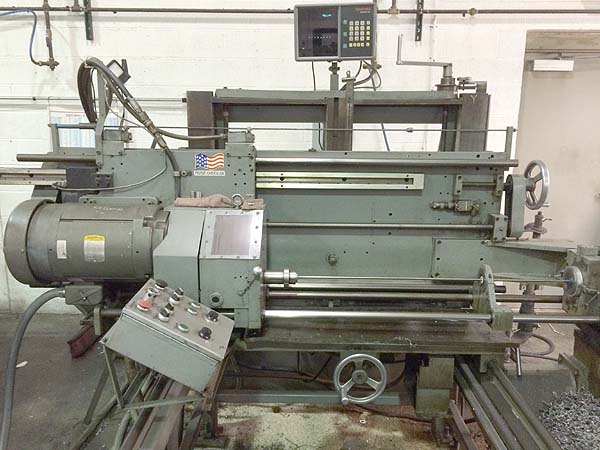

1"x 48" WARD & RIDDLE (Technidrill) COLUMN STYLE
HORIZONTAL DEEP HOLE DRILL
New 1970, Stock# K14484

EQUIPPED WITH:
Analam Digital Readouts, Variable Speed Infeed with Ballscrew,
5 HP Baldor Variable Speed Spindle, Ward & Riddle 500 Series
Drilling Head, 96"" x 48" T-Slotted Table, 15 HP High Pressure
Coolant System with Filtration


CATALOGUE SPECIFICATIONS:
Working Surface of Table.......................... 96" x 48"
Drilling Capacity (Solid Mild Steel).............. 1" Maximum
Drill Head Stroke................................. 48" Maximum
Vertical Spindle Travel........................... 16"
Horizontal Column Travel.......................... 96"
Spindle Horsepower................................ 5 HP
Electrics......................................... 230/3/60
Coolant System Horsepower......................... 15 HP
Coolant system Operating Pressure................. 1000 PSI
Coolant System Flow............................... 20 GPM
Coolant Reservoir Capacity........................ 200 Gallons
Approximate Machine Dimensions Set Up............. 210" x 150"
Approximate Machine Height........................ 80"
Approximate Machine Weight........................ 7,000 lbs

CONDITION: Appears to be in Excellent Condition !
