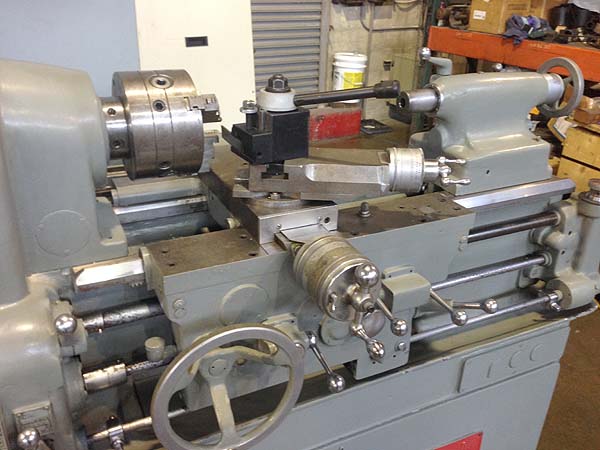

10" X 20" MONARCH MODEL "EE" PRECISION LATHE
MODEL:10-EE, New 8/1979/2002, S/N 52387
Stock # K14537

EQUIPPED WITH:

The `EE' Monarch is a Super High Precision Tool Room Lathe with a

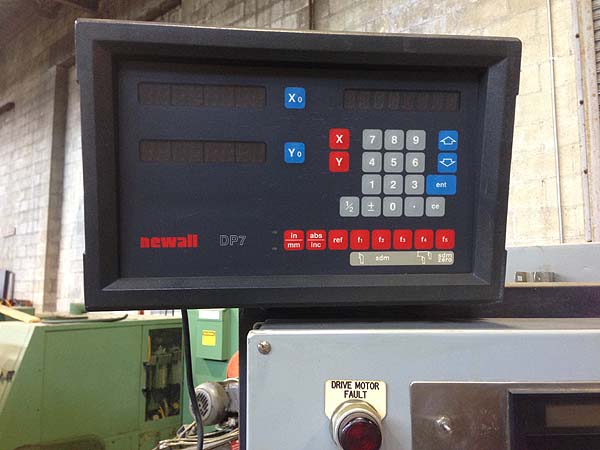

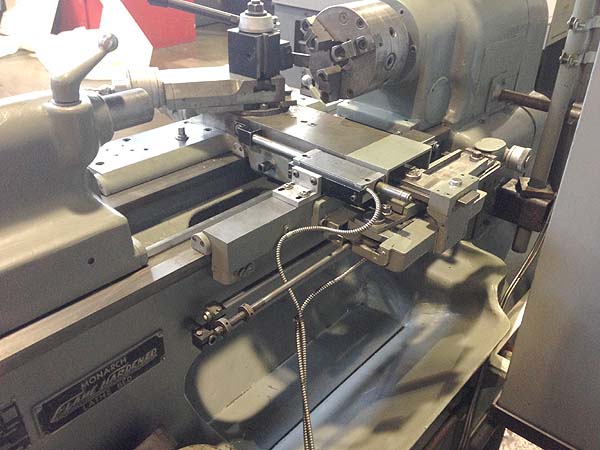

Replacement Cost of $80,000. Newall DP7 2-Axis Digital Readouts,

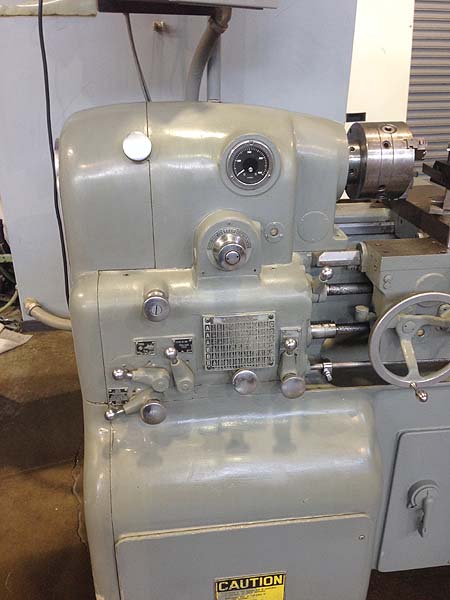

Updated with all new wiring and Variable Speed Head Stock with GE

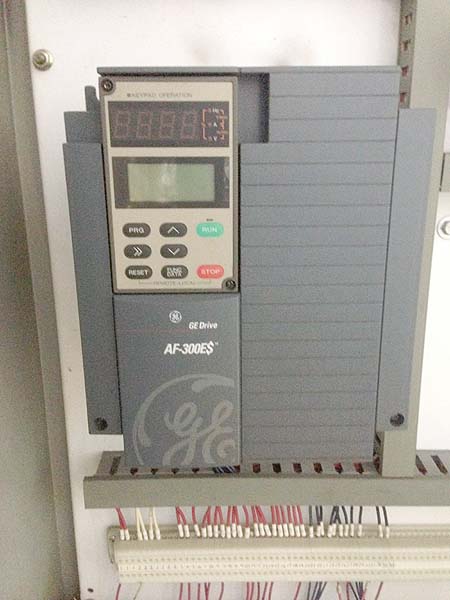

Solid State VS Drive, Right Hand and Left Hand Threading, Taper
Attachment, Hardened and Ground Ways, 6" 3-Jaw Chuck, Collet Chuck,
Face Plate, Collet Nose, Carriage Stop, Aloris Style Tool post
with 4 Drop on Tool Blocks, Coolant System.

CATALOG SPECIFICATIONS:

Swing Over Bed ........................................ 12-1/2"
Swing Over Cross Slide ................................ 7-1/4"
Distance Between Centers .............................. 20"
Centers ............................................... #2 Morse
Camlock Spindle Taper ASA ............................. D1-3"
Spindle Hole .......................................... 1-13/32"
Spindle Drive ......................................... 7 HP
Spindle Speeds, Range (Infinitely Variable) ........... 25-2500 RPM
Number of Thread Changes .............................. 60 Available
Range of Threads (English) ............................ 3 to 184 TPI
Number of Feed Changes ................................ 50 Available
Range of Feed Changes ................................. .0005" to .016"
Electrics ............................................. 480/3/60
Approximate Machine Dimensions......................... 72" x 48"
Approximate Machine Height............................. 53"
Approximate Machine Weight............................. 3250 lbs

CONDITION: Appears to be in Excellent Condition !
