Fuji ANS-31P CNC Turning Center For Sale
|
|
Turn Up Your Volume
CNC Turning Cell with Fanuc Robot |
|

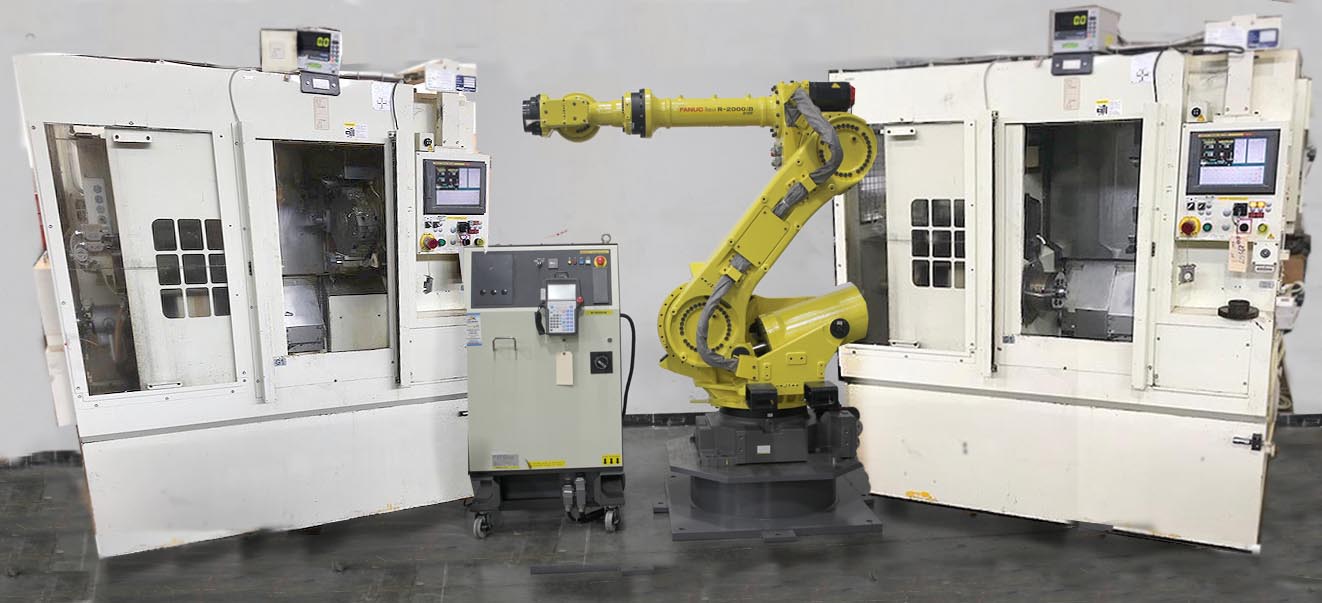

(2) Fuji Model ANS-31P Lathes with Fanuc R-2000iB Robot
|
Fanuc 18i-LNB CNC Control
16.5" Swing Over the Bed
8" Swing Over the Turret
8 Station Tool Turret
Hydraulic Part Clamping
X=8.86", Z= 10.31"
10HP, 35-3500 RPM |
Fanuc R-2000iB 6-Axis Robot
Accretech Micrometer Part Gauge
Tool Probe
Spindle Orientation
Auto Doors & Light Curtains
Expanding Mandrel Chuck
Chip Conveyor and Coolant System |
|
|
SPECIAL PRICE
$ 99,500.
Complete Turn Key Integration for Your Part Available.
Call for Pricing
|
|
| |
|
Fuji ANS-31P CNC Turning Center
Stock Number K15329 |
ACTUAL PHOTOS
FUJI ANS-31P CNC TURNING CENTER
Model ANS-31P, New 2008, S/N 1444 | 1445
Stock # K15329
EQUIPPED WITH:
Fanuc 18i-LNB CNC Control w/ Color CRT, Data Line RS-232 Port,
Linear and Circular Interpolation, Hydraulic Chuck Actuator with Expanding
Mandral Fixture, 8-Position Tool Turret, Tool Probe, Auto Lube, Auto Door,
Accretech Automatic Micrometer Part Measuring System, Light Curtains,
Chip Conveyor and Coolant System.
CATALOG SPECIFICATIONS:
Max Swing Over Bed...................................................... 16.5"
Recommended Max Work Diameter............................... 7.9"
Max Swing Over Carriage.............................................. 10.3"
Standard Chuck Size (Not Equipped)............................. 8"
Cross Travel (X-Axis)...................................................... 8.86"
Longitudinal Travel (Z-Axis)............................................ 18.31"
Rapid Traverse Rate....................................................... 944 IPM
Number of Turrets.......................................................... 1
Tool Positions................................................................. 8 Total
Spindle Bore................................................................... 2.2"
Spindle Nose.................................................................. A2-6
Spindle Speed Range (1 RPM Increments)................... 35-3500 RPM
Spindle Horsepower....................................................... 10 HP
Electrics.......................................................................... 230/3/60
Approximate Machine Dimensions................................. 75" x 69"
Approximate Machine Height.......................................... 86"
Approximate Machine Weight......................................... 7,000 LBS
CONDITION: Appears to be in Very Good Condition!
|
|
