90 Ton x 96" Strippit / LVD PBEB 90/08 CNC Hydraulic Press Brake

Stock Number P12336

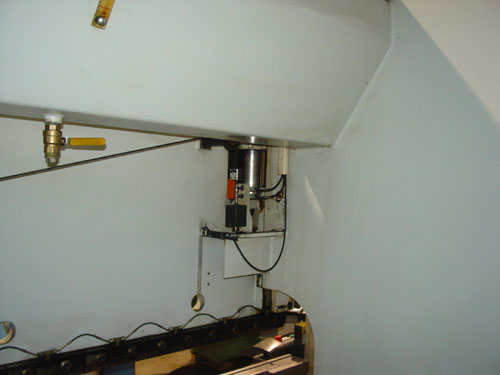

ACTUAL PHOTOS

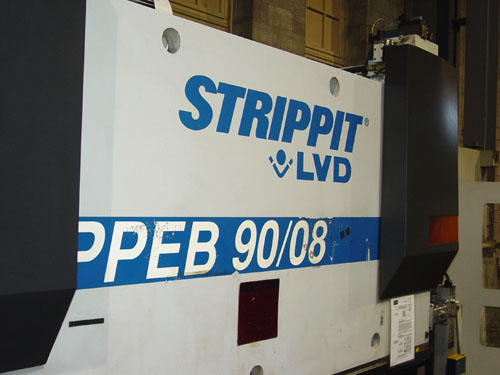

       90 TON X 96" STRIPPIT / LVD CNC HYDRAULIC PRESS BRAKE
                         Model PPEB 90/08, S/N 27253, New 2003

EQUIPPED WITH:

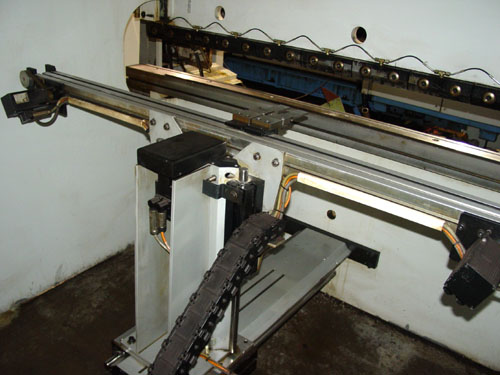

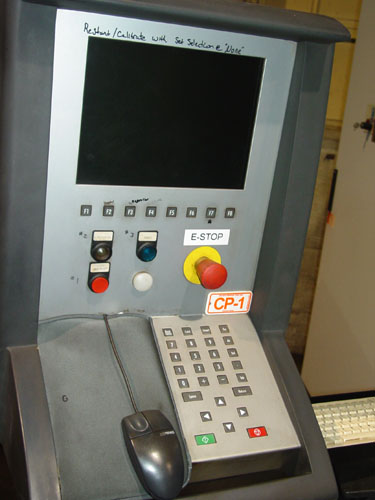

LVD CADMAN 4-Axis CNC Control, LVD 4-Axis Backgauge, RS232 Port,
Ethernet, Floppy Disc Drive, CD Drive, AdjustableStroke, Infinite
Pressure Adjustment, Programmable Crowning, Programmable Tonnage, High

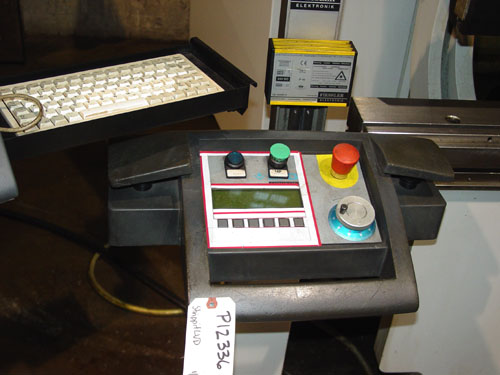

Speed Servo Hydraulic System, Pedestal Palm Station, Electric Foot
Switch.

NOTE: This Press Brake is the Highest End CNC Press Brake that Strippit / LVD makes and has a New Replacement Price in Excess of $175,000.


CATALOG SPECIFICATIONS:

Overall Length of Die Surface ........................ 96" (8')
Maximum Bending Length................................ 96" (8')
Distance Between Housings ............................ 80"
Tonnage Capacity:............................................. 90 Ton
Throat Depth....................................................... 15.7"
Length of Stroke (Adjustable).......................... 7.9"
Open Height....................................................... 15.7"
Pressing Speed (Approach)............................. 307 IPM
Pressing Speed (Return)................................... 320 IPM
Electrics................................................................ 460/3/60
Approximate Machine Dimensions................... 130" x 72"
Approximate Machine Height............................ 106"
Approximate Machine Weight............................ 14,000 Lbs

CONDITION: Machine Appears to be in Excellent Condition!
